The Three Components That Do the Work
1. The pressure tank. A welded air reservoir, typically 5 to 150 liters, charged from the plant’s compressed-air line. Tank volume—together with pressure—sets the energy of each shot: a small tank fired often suits thin, fresh buildup; a large tank suits consolidated material and long reach.
2. The quick-release valve. The heart of the cannon, and the main difference between manufacturers. A pilot signal (solenoid) shifts a piston that opens the full tank cross-section almost instantly. The faster the valve opens, the higher the peak force delivered for the same tank and pressure—which is why valve design, not tank size alone, determines real-world performance. Modern valves fire on positive pressure and fail safe: loss of supply air keeps the cannon closed.
3. The nozzle. The accelerated air enters the vessel through a pipe or fan-jet nozzle welded into the wall. The nozzle aims the blast along the wall surface, not into the material core—the goal is to peel buildup off the steel, and an angled sweep covers far more wall area than a straight jab.
The Firing Sequence, Step by Step
- Charging (10–60 s). The tank fills from the plant air line through a check valve until it reaches set pressure.
- Trigger (t = 0). The controller energizes the solenoid; the pilot pressure holding the piston closed is vented.
- Valve opening (first milliseconds). The piston shifts and exposes the full outlet cross-section nearly at once.
- Discharge (roughly 100–300 ms). The tank empties through the nozzle; peak thrust arrives in the first tens of milliseconds, then decays as tank pressure falls.
- Reset. The valve recloses on supply pressure and the tank recharges for the next shot.
The useful work is done almost entirely by the leading edge of the pulse—one reason a correctly sized cannon fired before buildup consolidates outperforms a larger cannon fired at a hardened deposit.

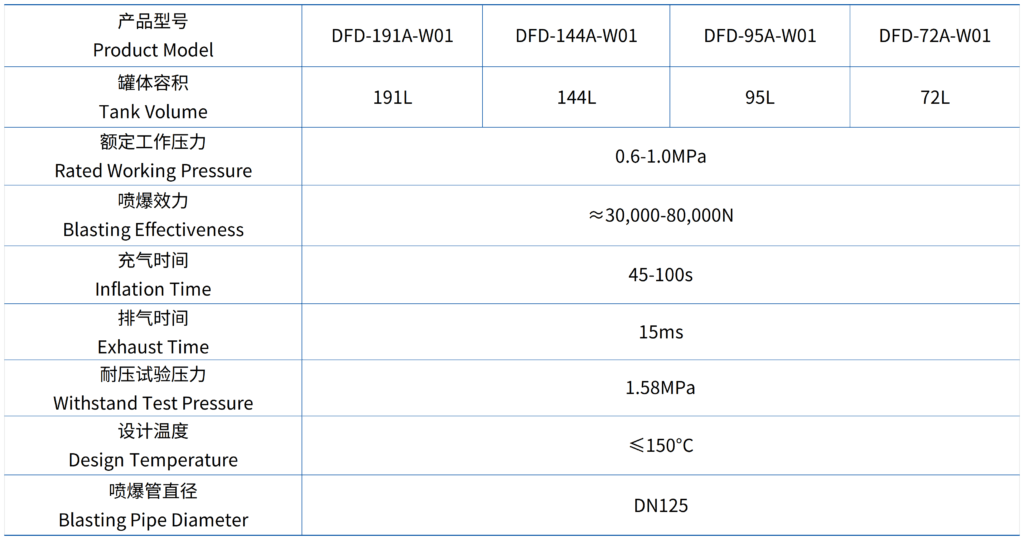

The Parameters That Matter
When comparing suppliers, ask for peak force at stated pressure and distance—tank liters alone say little, because valve speed differs between designs.
Why Air Cannons Don’t Damage the Silo
The instinctive worry—”you’re firing a cannon at my silo”—gets the direction wrong. The blast pushes off the wall, into the vessel: reaction forces at the engineered mounting are modest and spread through a welded pad sized for them. Compare that with the sledgehammer it replaces, which concentrates impact on unreinforced plate and leaves dents that seed future buildup (see our guide on how to unclog a blocked silo for why hammering makes blockages chronic). Thousands of cannons run for years on the same vessels, including high-temperature preheater installations in cement plants with heat-rated nozzles.
Two genuine engineering cautions remain: mounting pads must be welded and sized per the supplier’s drawing, not improvised; and cannons should fire during discharge, with the outlet open—blasting a closed vessel full of consolidated material does little but consume air.
Timing Is Half the System
A single heroic blast into a hardened rathole is the least effective way to use an air cannon. The effective pattern is the opposite: little and often, in sequence—cannons fired one after another, bottom ring first, on timed cycles while the silo discharges, so buildup never gets the consolidation time to gain strength. That is a controller function: firing order, intervals, and triggering (timer, level signal, or blockage detection). On multi-cannon systems, an air cannon sequence controller typically cuts air consumption versus manual or simultaneous firing while improving results—and it is the foundation the next step builds on: detection-linked, self-adjusting firing (more on that in our upcoming piece on smart flow control).
for whether a cannon or a vibrator fits your problem, start with what causes the blockage—our ratholing guide covers the diagnosis.
FAQ
Nova, Flow Applications Engineer at DEVONDI.
