——OVERVIEW
Intelligent Flow Aid Control System

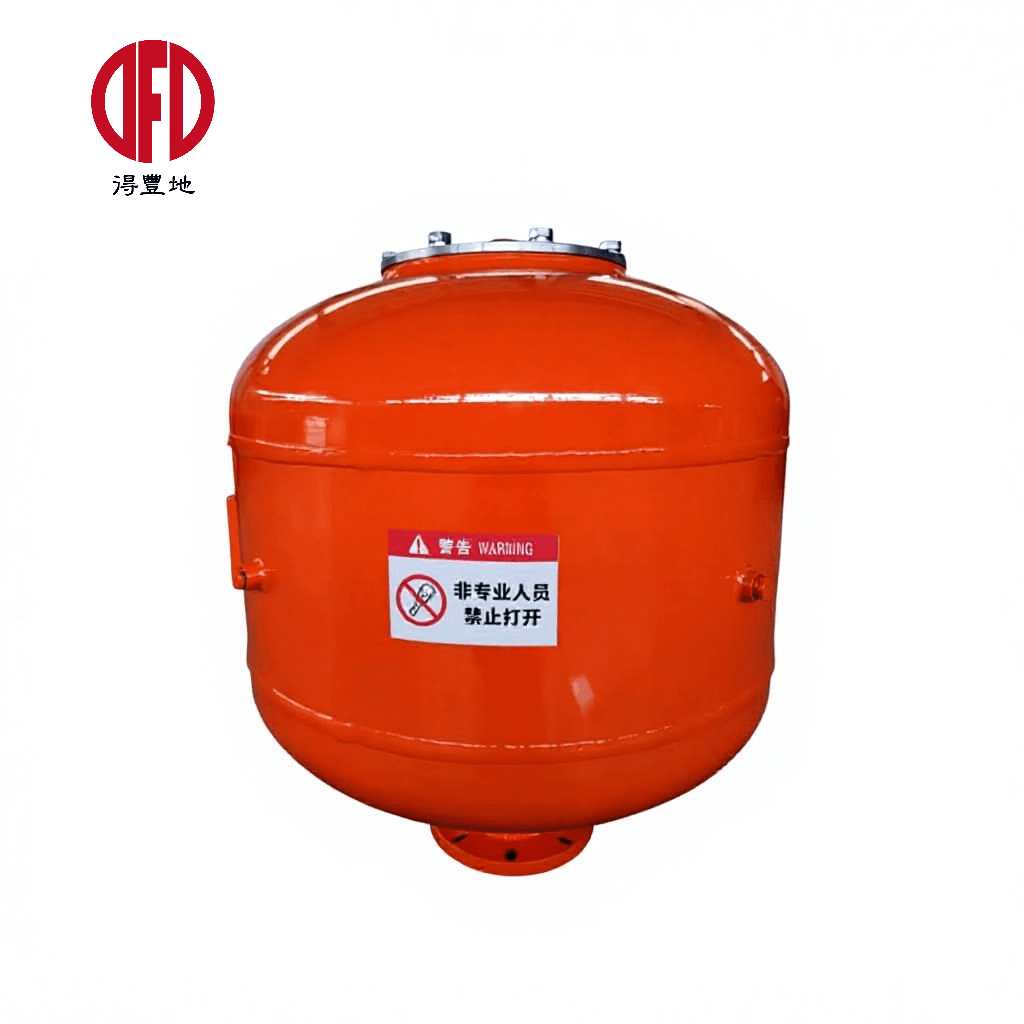

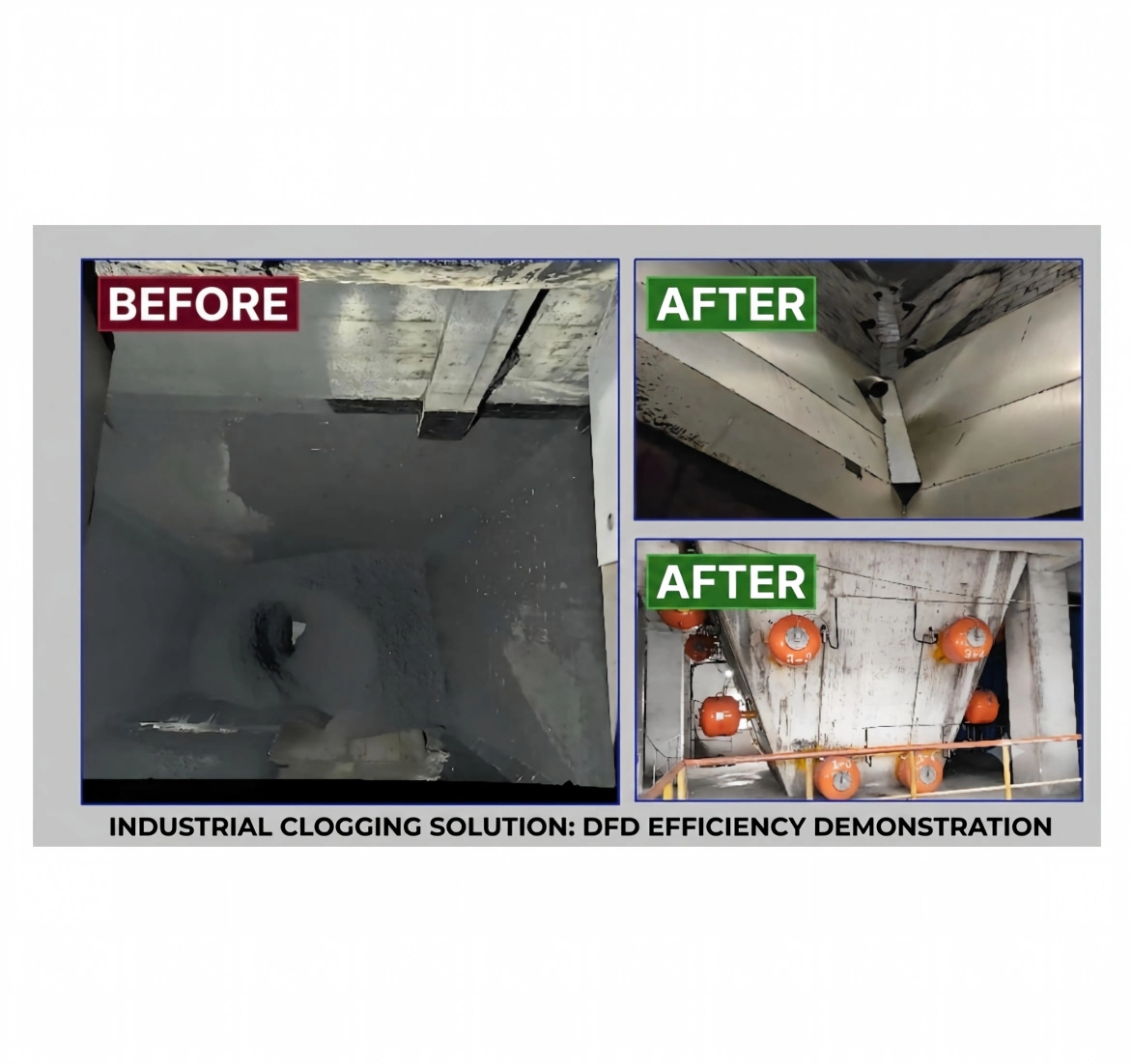

The air cannon releases stored compressed air through an innovative direct-injection valve directly into stagnated material with zero velocity loss. Mounted on narrow chutes, silo cones, or hoppers, it removes build-up before it becomes a blockage
- 10× Blasting Power: DN125 diameter delivering up to 4T impact force with zerovelocity loss.
- 30% 50% Air Saving: Drastically reduces compressed air consumption at the sameblast frequency.
- Confined Space Friendly: Ultra-compact structure optimized for narrow chutes andhoppers.
- Zero Maintenance: Polyurethane-coated piston and internal cone shield against dust and abrasion.
⋅ Typical lead time:30-45 days ⋅ Warranty: 12 months
——TECHNICAL DATA
MODEL RANGE
| Model | Tank Vol (L) | Instantaneous Blasting Force (N) | Inflation time (s) | Outlet (mm) | Working Pressure (Mpa) |
|---|---|---|---|---|---|
| DFD-191A-W01 | 191 | 210 | 0.7-1.0 | 80,000 | 60 |
| DFD-144A-W01 | 144 | 210 | 0.7-1.0 | 65,000 | 45 |
| DFD-95A-W01 | 95 | 210 | 0.7-1.0 | 58,000 | 29 |
| DFD-49A-W01 | 49 | 210 | 0.7-1.0 | 53,000 | 15 |
Tailored Flow Aid Solutions for Diverse Materials
Intelligent, fully customized flow aid technical configuration solutions based on different material properties.
CONFIGURATION O1
AIR CANNON SYSTEM
Basic pneumatic impact solution
Target Materials
Coal powder, Cement clinker, Fly ash, Dry sand,etc.
Delivers a powerful, instantaneous blast ofcompressed air to break bridges and ratholes instantly without damaging silos.
CONFIGURATION O2

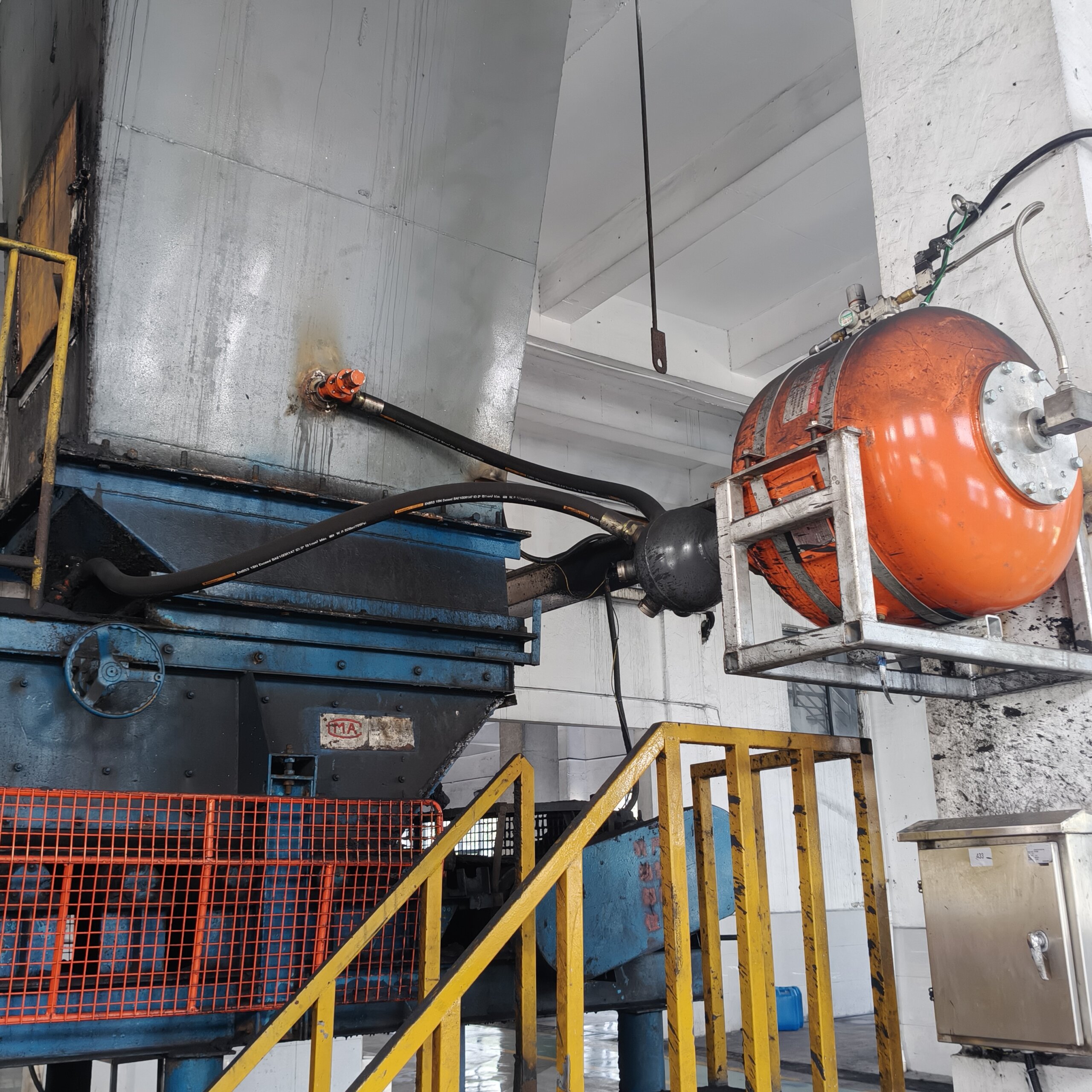

AIR CANNON & FBC
Pneumatic + Aeration combined solution
Target Materials
Wet coal, Slurry, Coal dust, High-moisture & Sticky materials, etc.

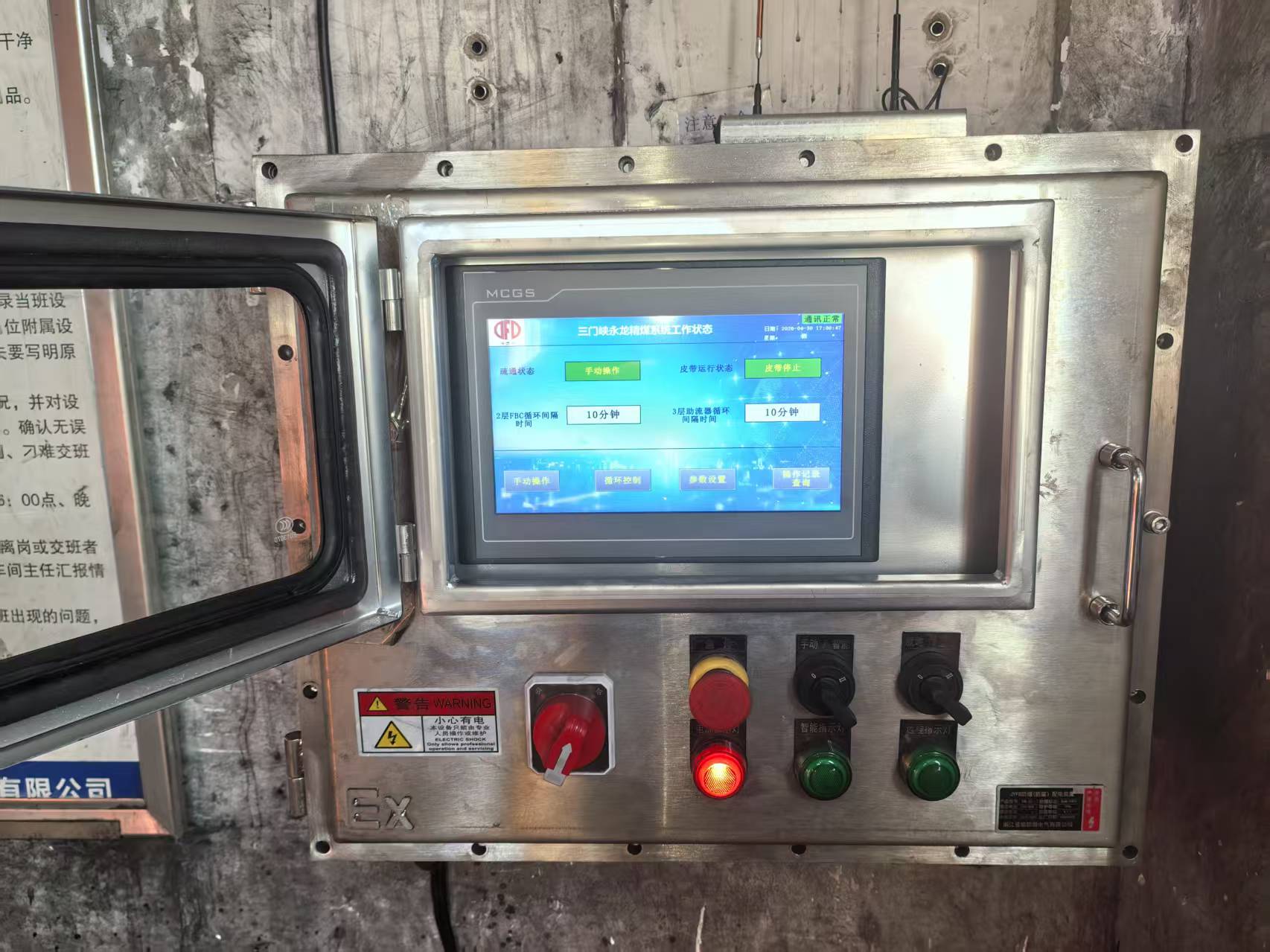

360° wrap-around airflow strips wall adhesions instantly, while the intelligent pulse system automatically adjusts intensity to reduce downtime.
CONFIGURATION O3
LINEAR VIBRATOR
Comprehensive bespoke clearing solution
Target Materials
Wet coal, Sludge, Coal dust, Caking bulk solids, etc.
Linear Vibrator customizes frequency /amplitude to maintain continuous bulk flow.
Need a Custom Flow Aid Solution?
Our engineers will design the perfect system for your silo specifications.
